Description

Brief Introduction

Stationary concrete placing boom: distributing equipment for concrete pouring specially designed and produced for engineering construction of railway beam field, nuclear power and so on;

floor climbing concrete placing boom, of three sections of folding arm in the “Z” shape, can be rotated all around, pitched and folded, its amplitude can be changed, realizing three-dimensional and full range of pouring within the length of cantilever crane, leaving no dead space, also, it can easily realize concrete pouring in all sorts of construction operation, including wall, tube, column and pile.

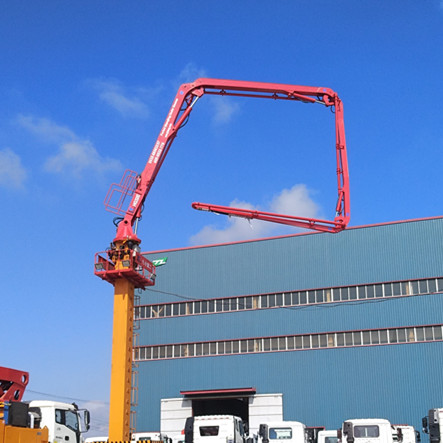

Self-climbing concrete placing boom overview at our factory

Qingdao JIUHE Heavy Industry Machinery Co., Ltd. | JIUHE CMS

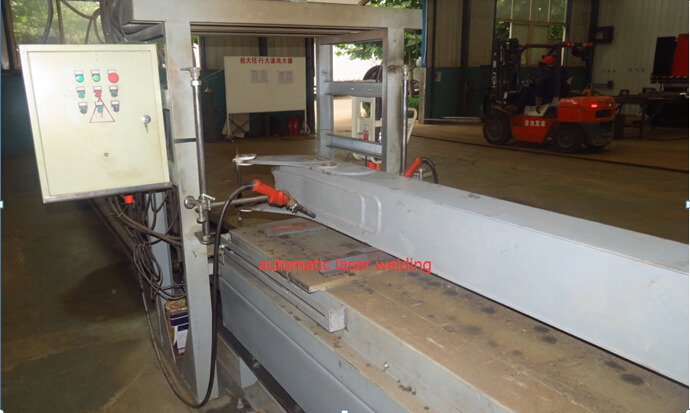

Concrete placing boom production workshop showing:

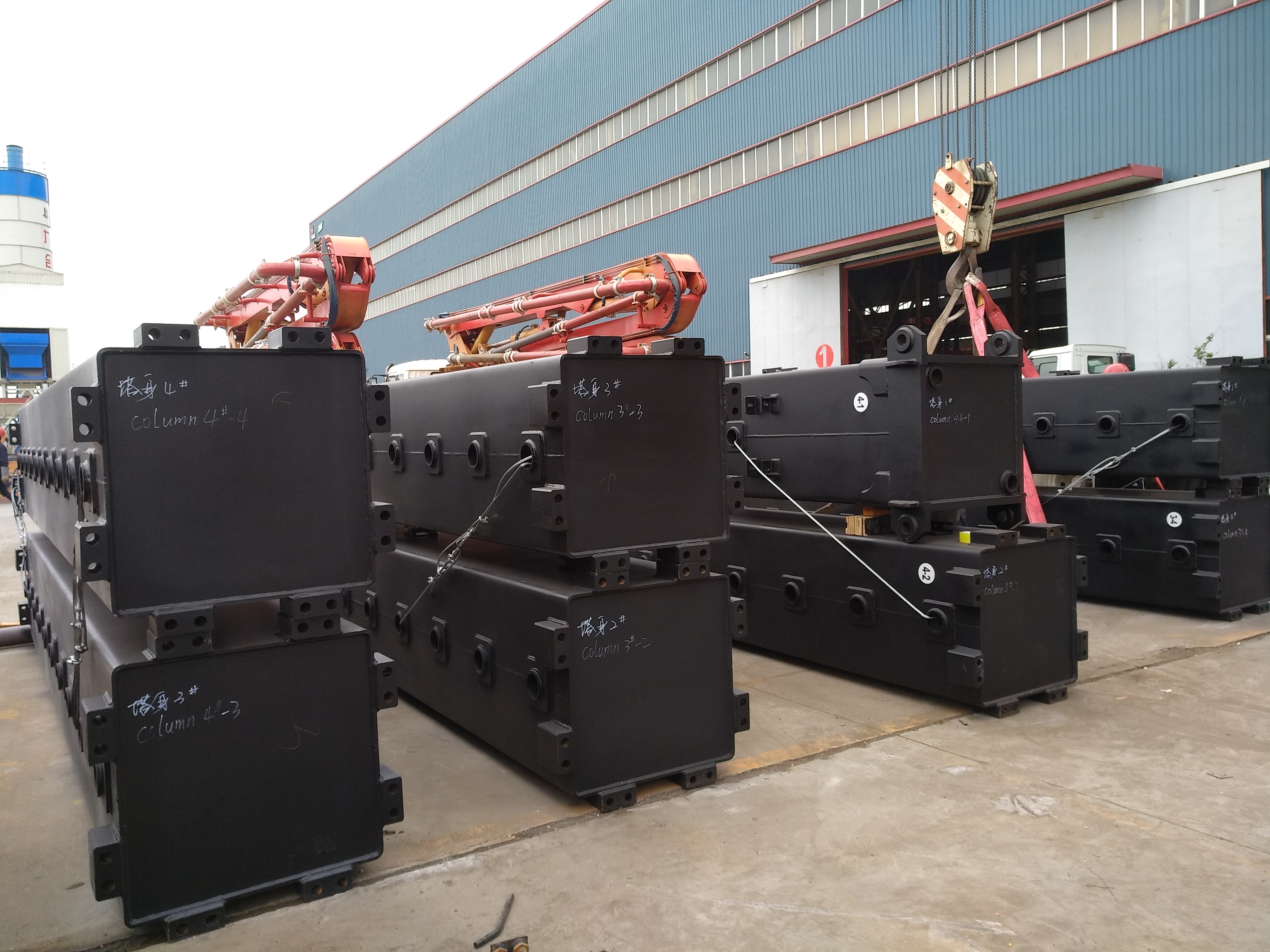

Self-climbing 28m 32m 33m 36m concrete placing boom stock at our factory

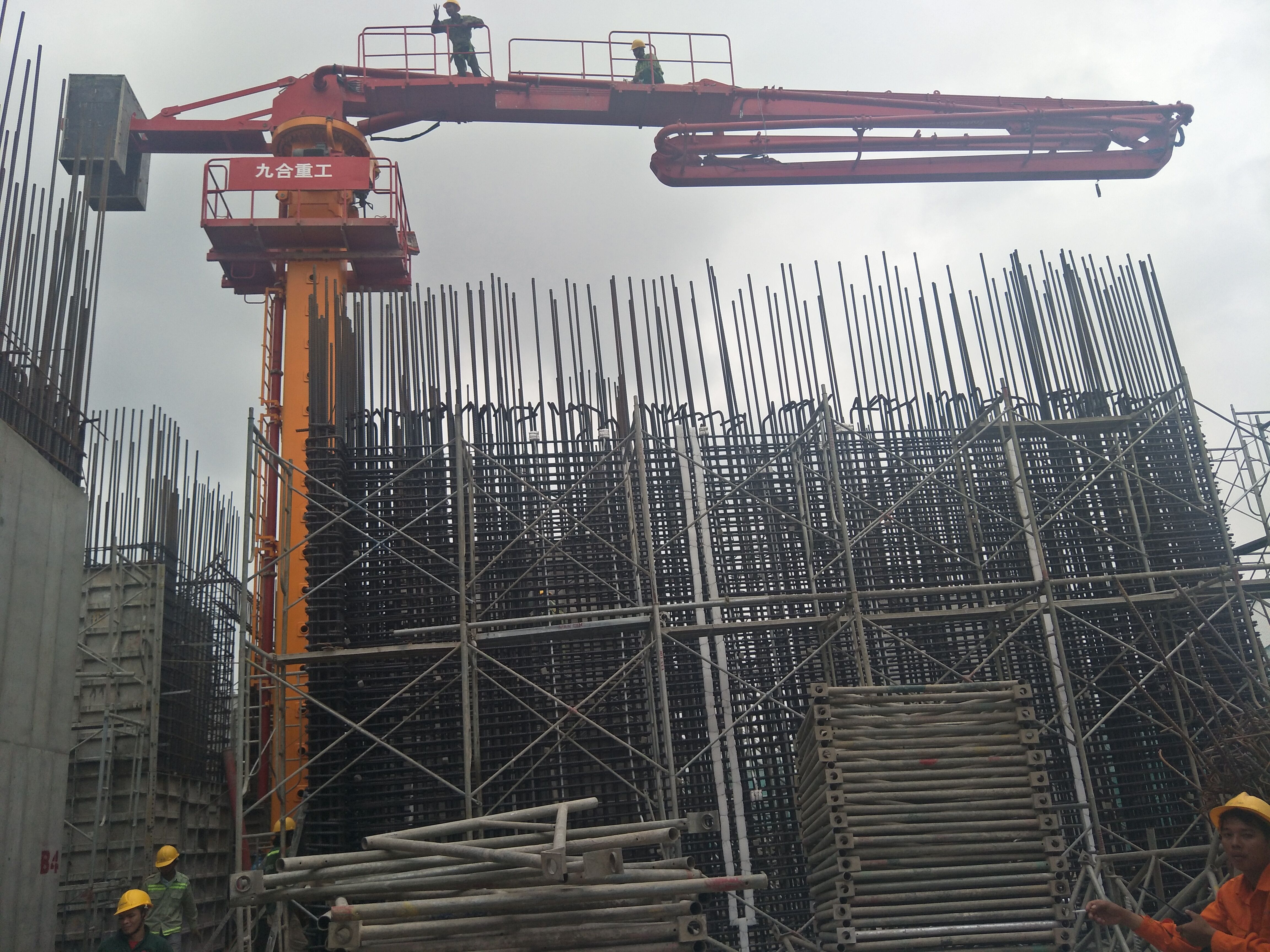

Our self-climbing cocrete placing boom at jobsite over sea

Qingdao Jiuhe Group Team

Features

Model		HG28
Delivery pipe dimension (outside diameter×thickness) (mm×mm)		φ133×4.5
Delivery hose dimension (inside diameter×length) (mm ×mm)		φ125×3000
Radius of placing boom(m)		27.7
Stationary height(to the join between the end of the boom and swivel table(m)		22.7
Three hydraulic foldable arms	1st section	10.5m
	2nd section	9.2m
	3rd section	8.0m
Boom articulation	1st section	-4.2°～+82.5°
	2nd section	O°～180°
	3rd section	O°～180°
Slewing range(°)		360
Power of motor(kw)		11
Pressure of hydraulic system (MPa)		30
Type of hydraulic oil		AW68
	Climbing	3.0
The min Interval of climbing frame	Placing concrete	6.0
	Resting
Mode of operation		1． cable remote control 2． radio remote control
power		380V/50Hz
wind speed	Placing concrete	≤60 km／h
	Climbing	≤28 km／h
working temperature		0～60℃
