Description

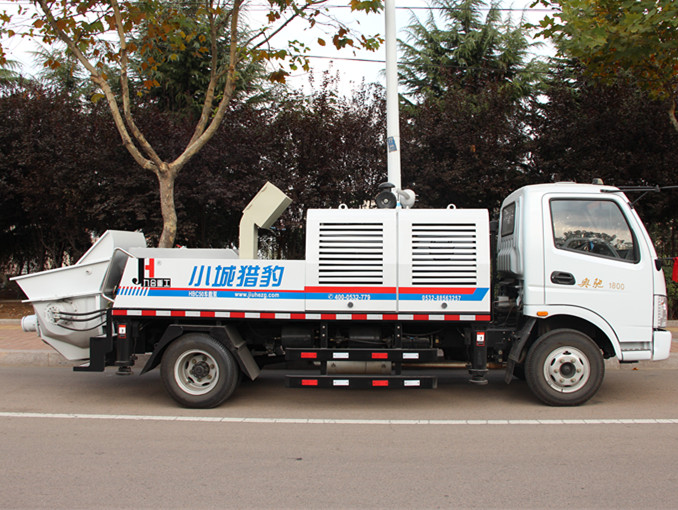

Truck mounted concrete pump is a good integration of Jiuhe concrete transporting pump mechanism and the high quality chassis, synthesized the advantages Jiuhe pump truck and the advantages of Jiuhe trailer concrete pump with the feature of stable performance, appealing design, easy for maintenance, flexible operation, conveniently site transfer and transportation.

Jiuhe cooperates with internationally known industrial design company to have the product combined aesthetic thoughts, making it with a all around creative design, then the new vehicular concrete pump was launched after a full research on its reasonable whole layout.

Adopting Europe fashionable design idea makes product appearance beautiful, styled, smooth and human-friendly.

All of those Giveing customers a great feast, and at the same time, the convenience of operation and maintenance are also increased a lot.

Thoughtful attention to every details guarantee product with excellent quality.

Advanced configuration

Power system:

it adopts original VOLVO/DEUTZ/LOVOL diesel engine.

Main oil pump:

It adopts German HAWE, Rexroth series and Japanese Kawasaki series. It adopts variable displacement piston pump, making sure system with a stable and reliable performance. And it has overpressure and overflow function, so that the main pump and diesel engine can be protected effectively.

Chassis:

Jiuhe truck mounted concrete pump only adopts Dongfeng chassis and uses it for a long time, since Dongfeng product quality is at the leading domestic level. It has the following features: mature and reliable, powerful, comfortable driving, good performance, favorable price and so on. And it has reached the national Ⅳ emission standard.

Qingdao JIUHE Heavy Industry Machinery Co., Ltd. | JIUHE CMS

Good concrete absorbing performance:

It has been optimized in inner surface wall of hopper, smooth without material buildup, and together with the smooth S pipe and the precious blade angle, all of which makes the concrete be absorbed into concrete cylinder to the greatest extent possible and improved the concrete absorbing efficiency above 90%.

Large diameter conveying cylinder:

The diameter of conveying cylinder is increased to 230mm, for which decreases the round trip abrasion of piston and prolonged its lifetime. Using large diameter conveying cylinder and match the optimized hopper device, it increases the pump’s extreme limit of conveying concrete.

High-low-pressure automatic switching technology:

It is a highly integrated large-flow automatic reversing device, making minimum energy loss, and the switching between high pressure and low pressure transporting can be realized only by one key without penetration and pollution.

Every carefully selected unit can create unique products, making a perfect combination of high quality and practicality, which will surely bring extraordinary performance.

The whole machine uses imported original group valve and together with the high quality main oil pump and the excellent assembly quality to have the highest standard of performance and reliability. Depending on a number of mature concrete pump technology, it got good feedback from users and warmly welcomed among our clients.

Hydraulic hose connector:

It adopts American Eaton product to make sure hydraulic system safe without leakage.

Seal components of large oil cylinder:

Those components are from American Parker.

Radiator:

The radiator is air-cooled type, enabling the machine to work under the allowed highest temperature.

S tube valve:

The S tube valve uses high manganese steel to make it, overall cast. Easy wear out surface adopts wear-resistant material for bead weld and it is with the advantage of high pressure resistance and highly wear resistance.

Wear plate and cutting ring:

The two things are made of anti-wearing horniness alloy, they have long service lives.

Piston:

The pistons are precisely processed with imported material, having hydrolytic resistant, wear resistant and high temperature resistant characteristics. The whole layout has reserved room for future maintenance and replacement, making convenient for repairing of other parts.

Products are highly modular and standardized, saving lots of time for maintenance and replacement.

Wear plates are inner built with large maintenance room, which is easy for replacement.

Intelligent design:

Lubricating system:

Lubricating system uses automatic multi-point lubricating technology, one-to-one lubrication, and with better performance and prolonged the lifetime of easy wear parts.

Electrical parts:

Main electric elements are from Schneider and LG, the reliability of the electric-control system is highly improved.

Automatic protection technology: Diesel engine startup protection, electric system failure and short circuit protection, auto protection of diesel engine on too high temperature water and low oil pressure, speed limit protection of diesel engine, and quick-stop button.

Quality guarantee

More reliable service quality and save your cost accordingly.

Qingdao Jiuhe Heavy Industry Machinery Co., Ltd. has a high quality after-sales service tem with knowledge and experience, and well equipped, readying to provide service for your equipment, anytime and anywhere.

Multi-level, multimode and high efficiency service training make the service team develop all of their skills and each of them an expert in this field.

Providing you with high quality pre-sales, sale and after sales service, one-stop total solution and the efficient save system, guaranteeing your equipment running well without worries and maximum save your costs.

Features

1. Technical parameter

ITEM			SPECIFICATION
Model			HBC50.12.56
Driving system	Chassis brand		FAW/WUZHENG
	Fuel type		Diesel
	Displacement/Power		4.5/132 L/KW
	Displacement standard		National Standard IV
	Tyre model		7.50
	Axle base		3.66 m
	quantity of axles		2
	Max. driving speed		80 Km/h
	Front wheel base		1530 mm
	Back wheel base		1600 mm
Pumping system	Brand of diesel engine		WEICHAI Brand
	Diesel engine model		YC6108ZGB
	Diesel engine power		56 KW
	Driving mode		Hydraulic driving
	Oil cylinder inner diameter × stroke		Ф125 mm ×Ф80 mm ×1200 mm
	Concrete cylinder inner diameter × stroke		Ф200 mm ×1200 mm
	Oil pressure of system		32Mpa
	Switch of H-pressure and L-pressure		Equipped
	Theoretical pumping pressure		H-pressure	12 Mpa
			L-pressure	4 Mpa
	Theoretical pumping frequency		H-pressure	8 times/min
			L-pressure	18 times/min
	Fuel tank capacity		180 L
	Oil tank capacity		200L
	Cooling mode of hydraulic system		Fan cooling
	Max. theoretical capacity		H-pressure	20 m3/h
			L-pressure	50 m3/h
	Pumping distance (H-pressure)	Max. Horizontal	125A pipe	300 m
		Max. Vertical	125A pipe	120 m
	Hopper capacity		0.6 m3
	Feeding height		≤1300 mm
	Concrete slump		14～23 cm
	Max. aggregate diameter		Crushed stone: 40 mm / Pebble: 50 mm
	Valve		S Valve
	Water pump for cleaning		24V DC motor water pump
	Concrete pipe cleaning mode		Water cleaning/dry cleaning
	Water tank capacity		200 L
	Operation mode		Manual /Wire
	Lubrication mode		Automatic
Overall dimension	Length (mm)		7200 mm
	Width (mm)		2100 mm
	Height (mm)		2750 mm
Full-load total weight			6500 Kg

2. Main Configuration of Dynamical System

Name	Qty.	Manufacturer
Diesel engine	1	LOVLOL
Shaft joint	1	Chinese famous brand
